How to adjust the installation angle of the spiral sand washer

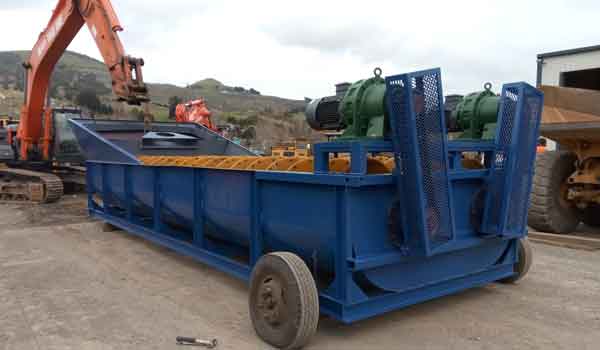

A spiral sand washing machine is mainly used to remove impurities in mine sand and stone, and it is mostly washed with water. The equipment has three functions of cleaning, dewatering, and grading. It is widely used in the washing of construction sites, sand and gravel plants, concrete dam sites of hydropower stations, concrete precast plants, glass plants, and pressure sand for backfilling oil wells. After the user purchases a high-quality spiral sand washer, if it is not installed properly or accurately, it will not be able to exert its effect. How to adjust the installation angle of the spiral sand washing machine directly determines the production efficiency of sand making. So, what are the problems that need to be paid attention to in the process of installing the sand washer, and what factors affect the installation angle? This article will analyze it for everyone.

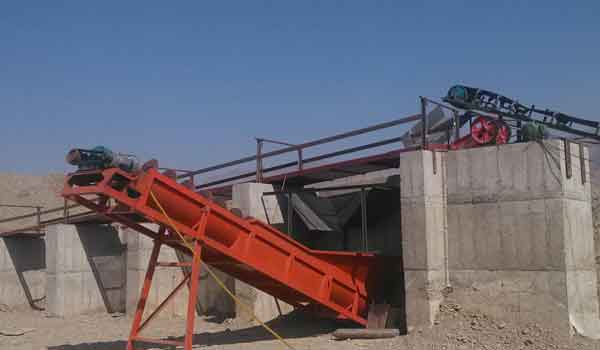

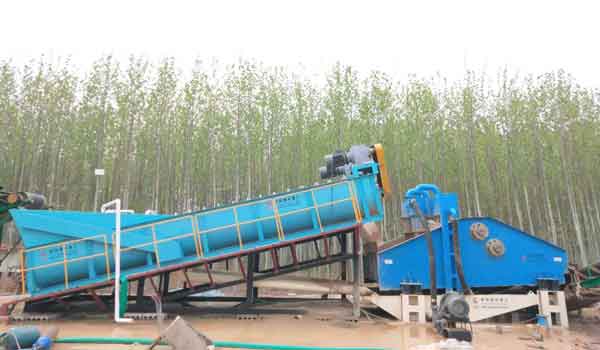

Spiral sand washing machine installation

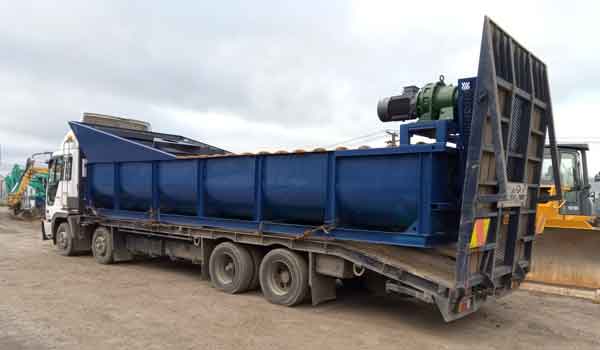

1. After the spiral sand washer is delivered, the user should immediately check whether the parts are complete and whether they are damaged. After confirming that the machine is intact, the installation can be carried out.

2. The user should design the foundation construction drawing of the stone washing machine according to the specific conditions of the site, and install the stone washing machine firmly on a solid concrete foundation.

3. During installation, the machine must be installed at an inclination angle according to the requirements of the installation drawing.

4. The motor is installed on the guide rail to adjust the tightness of the belt. The pulley and the motor pulley should be parallel when installed.

5. After adjusting according to the above requirements, rotate the rotor disc a few times to check for jams and collisions.

How to adjust the installation angle of the spiral sand washing machine

1. Affected by the particle size of the material. Specifically, if the particles of the material are relatively large and the required sand washing concentration is relatively large, the angle of inclination of the spiral sand washer will be larger when installed, so that it is convenient to use gravity to accelerate the overflow speed. If the particles of the material are relatively small, the user of the sand washing machine needs to have a relatively small concentration of sand washing, and the installation angle can be smaller if the installation angle is inclined.

2. Affected by the configuration of the sand-making machine. If the configuration of the sand making machine is high, the processing capacity is high, and the production efficiency is high, the amount of feed is relatively large and the speed is relatively fast so that the inclination angle of the sand washing machine connected to it can be larger so that it can be Ensure that the feed is sufficient. On the contrary, the inclination angle should be smaller to prevent too much material from causing insufficient processing capacity and causing a blockage.

3. Affected by the firmness of the ground. If the ground at the installation site is strong enough, the inclination angle should be increased, otherwise, only a small angle of inclination can be satisfied.

4. Affected by the weight of the spiral sand washing machine. If its own weight is relatively large, the angle of inclination should be smaller.

Therefore, when installing the spiral sand washer, it is necessary to set some numerical values ?? for the spiral sand washer according to your own site conditions and your own needs. This is not the same for every customer. After the installation is completed, operation and testing are required.

Spiral sand washing machine running

1. After the motor is started, the machine should run smoothly without abnormal vibration.

2. The temperature rise of the bearing does not exceed 35°C.

3. The idling time is 2-4 hours. After the test machine, check whether the connections are loose and adjust them.

Load operation test of spiral sand washing machine

1. The load operation test can only be carried out based on a good no-load test operation.

2. The machine should run smoothly without abnormal vibration.

3. The temperature rise of the bearing does not exceed 40°C.

4. No dust can enter into each seal.

If you encounter any problems that cannot be solved by yourself while using the spiral sand washer, please feel free to contact us. We will arrange professional and technical personnel to solve your problem.
