LSF Hydraulic Classifier

The LSF hydraulic classifier is part of the family of classification equipment. It adopts the “layer flow high shear rate” mechanism, solving the problem where traditional technologies cannot adapt to changes in feed particle size, resulting in the loss of fine material recovery. The LSF hydraulic classifier offers significant advantages in capacity, adaptability, and efficiency, delivering higher recovery rates and superior classification performance. The LSF hydraulic classifier can be applied to aggregate processing, coal mud separation, quartz sand production, ceramic raw material processing, silica sand processing, and various metal mine tailings sorting and processing. Working principle The LSF hydraulic classifier separates small particles based on differences in density or particle size. It combines a traditional fluidized bed separator with a set of parallel inclined plates that form a thin-film channel. Fine particle materials enter the interior of the thin-film chamber through the feed inlet, thus entering the mixing chamber located below the thin-film, where the material is fluidized to form a slurry under the action of the fluidized bed. Materials with high density will sink due to gravity, while materials with low density will float up. At the bottom of the mixing chamber, a high-density sediment solid bed forms. This dense bed layer is maintained in a suspended state by fluidized water jets entering from the chamber base. The turbulent motion generated by these upward-injected fluidized waters sorts coarse and fine low-density particles trapped within the dense fluidized bed, causing them to rise into the thin-film chamber above. Meanwhile, high-density particles sink to the bottom of the fluidized bed under gravity and migrate toward the discharge cylinder at the base of the liquefaction chamber. The LSF supports remote monitoring and control via intelligent systems. Once preset parameters are reached, the automated unloading device can be opened or closed by the control cylinder for efficient discharge. Features 1. Customizable to meet specific on-site requirements; 2. Easy to transport and install; 3. Simple adjustment, flexible process flow, and higher efficiency; 4. Compact structure, user-friendly operation, and suitable for any production line layout; 5. Remote monitoring capability with a high degree of automation; 6. Reduced maintenance costs.

Learn More

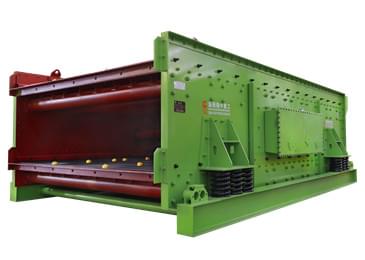

Banana Screen

The JR banana screen is ideal for screening, dewatering, medium-density separation, desliming, and other processing operations involving coal, gravel aggregates, minerals, and various bulk materials. This series features customizable configurations—including varying screening areas, mesh aperture sizes, numbers of screen deck sections, and inclination angles—tailored to specific applications and throughput requirements. Available in single-deck and double-deck models, the working area ranges from 5.7 m² to 30.2 m². With over 20 primary specifications and models, this equipment meets the production demands of diverse mining operations and coal preparation plants. Structure The Banana vibrating screen consists primarily of a screen box, screen mesh, vibration exciter, damping springs, and a lower support frame. It utilizes a motor and an exciter as the vibration source. The exciter comprises an eccentric shaft, pulley, bearing, and bearing seat. Driven by the motor, the eccentric shaft rotates to generate centrifugal inertial force, thereby inducing vibration in the screen box. Technical Characteristics 1. The banana sieve features high screening efficiency and significantly greater processing capacity than traditional grading screens, making it an advanced screening machine. 2. Vibrator: Utilizes the world-leading JR-type box vibrator with splash lubrication and a built-in oil channel within the housing to ensure comprehensive bearing lubrication. It employs high-precision helical gears and specialized bearings designed for vibratory equipment. The drain plug is magnetic, and an external transparent organic plastic sight glass allows for easy monitoring of the oil level. Special measures are taken to ensure smooth operation of bearings and gears; the vibrator noise level is below 75 dB, and the bearing temperature remains under 50°C. 3. The exciter beam adopts a three-I-shaped beam structure, overcoming the issue of weak force distribution in the center of conventional square beams. Equipped with reinforcing rib plates, it offers high rigidity and lightweight design, with stress relief treatment applied after welding. 4. The beam surface can be coated with a polyurethane protective layer, providing resistance to erosion and abrasion for extended service life. 5. Shaped cutting and drilling of the side plates are performed by high-precision CNC machines to ensure dimensional accuracy. The side plates feature no weld seams to avoid stress concentration, thereby preventing cracking. 6. The screen surface can be secured using two methods: a middle rail seat design with polyurethane-pressed wood at both ends, or a middle-pressure plate design with polyurethane-pressed wood at both ends. Both configurations support the installation of either polyurethane or stainless steel…

Learn More
