LZZG offer a wide range of Screw Sand Washer, which is widely appreciated across many industries such as coal, aggregate, and mineral. Fabricated using optimum grade Q345 steel material, our range of sand washers, gravel washers are appreciated for higher efficiency and durability. There is less chance of wear and tear and offers longer service life.
LZZG Screw Type Sand and Gravel Washer are widely used to remove dust from sand and hence improve the sand quality. The sand washer, gravel washer designed by LZZG is highly acclaimed for its minimum sand loss during washing, high efficiency, and simple structure.
LZZG series introduced products to absorb foreign advanced technology, and designed combined with sand field actual situation. It can effectively reduce the loss amounts of fine material; solve problems of end product such as relatively high fineness modulus and relatively low stone powder content. The fine material can be recycled as high as 95%, with incomparable technical and economic advantages.
| Model | Feeding Size(mm) | Capacity(t/h) | Spiral Diameter(mm) | Spiral Shaft | Tank Length(mm) | Power(kw) | Overall Size(mm) |
| LX0760 | ≤10 | 20-40 | 760 | 1 | 6000 | 7.5 | 5700X1420X1900 |
| LX0920 | ≤10 | 30-60 | 920 | 1 | 8000 | 11 | 8710X1630X2080 |
| LX1120 | ≤10 | 40-80 | 1120 | 1 | 8000 | 18.5 | 9230X1840X2130 |
| LX1500 | ≤10 | 50-100 | 1500 | 1 | 8000 | 22 | 9620X2230X2480 |
| 2LX0920 | ≤10 | 60-120 | 920X2 | 2 | 8000 | 11X2 | 8710X2600X2080 |
| 2LX1120 | ≤10 | 80-160 | 1120X2 | 2 | 8000 | 18.5X2 | 9230X3050X2130 |
| 2LX1500 | ≤10 | 120-250 | 1500X2 | 2 | 8000 | 22X2 | 9620X3730X2480 |
Spiral sand washer is a kind of efficient sand and gravel washing machine, which is widely used for sand and stone washing, grading and impurities removing. Spiral sand washers also called sand screw washers, are specifically used to produce quality sand for construction, highways, railways, glass making, water and electricity industries and more.

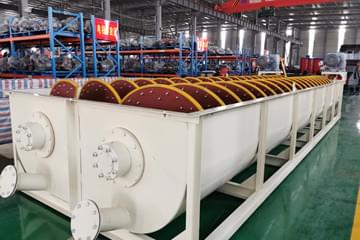

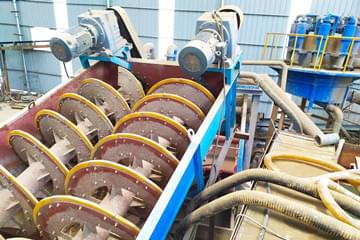

Spiral sand washing machine can be divided into single screw and double screw washing machine, and with the features of high cleanliness, good sealing structure, power consumption, fully closed transmission device, adjustable weir plate, durability, good dehydration effect, stability of finished product and more.
Working principle
Screw sand washer is based on the principle of different specific gravity of solid particles and the different sedimentation rate in liquid to realize washing process. And is equipped with water spray pipes in cleaning tank. When working, a certain amount of water is supplied to flush and submerge the raw sand in cleaning tank from the inlet.

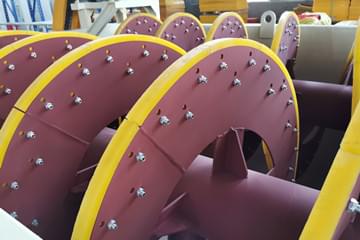

At the same time, the spiral is continuously stirred and graded, and dirt impurities, mud and tiny solid particles are suspended in the upper turbid water, gradually overflowing from the low-end overflow weir; the coarser sand particles sink to the bottom of the tank by gravity. As the spiral rotates continuously, the coarse sand is continuously agitated and graded in the water, so that the sand is fully washed.
Features
1. Reasonable structure, convenient maintenance, small power consumption. The novel sealing structure of the spiral stone washer, the whole sealing oil bath type transmission device and the adjustable overflow weir plate ensure that the series of products are durable, with good cleaning and dewatering effects, and the fine products are not disorderly.
2. Large processing capacity, because the screw sand washing machine sand washing principle is not to use a bucket to “catch”, so its processing capacity has been greatly improved.
3. The higher energy utilization rate reduces the energy loss caused by the wheel bucket in the process of lifting, so that the energy can be better utilized.
4. High cleanliness. More time and times for the sand to be cleaned compared to wheel type sand washer.
5 common faults of sand washing machinesThe sand washing machine is indispensable production equipment in the mechanism …
What are the advantages of environmentally friendly sand-making machinesAs the main force for expanding molding sand sources, machine-made sand has ushe…

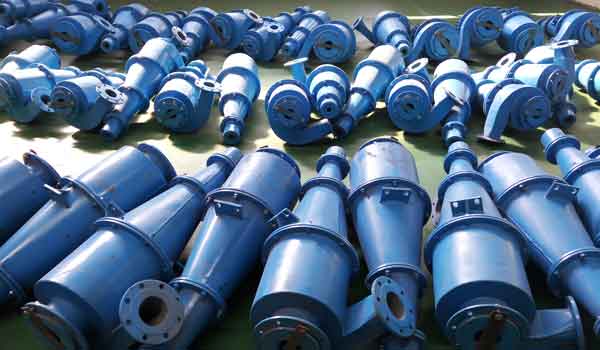

How to increase the efficiency of cyclone separatorThe dust removal efficiency of the cyclone dust collector is related to the part…
