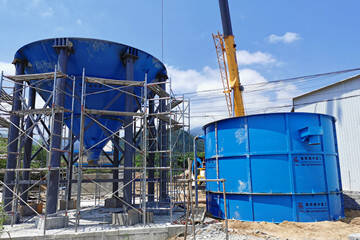

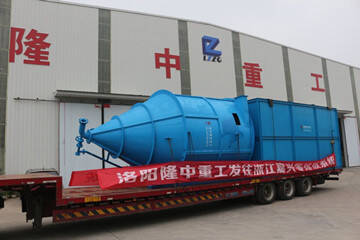

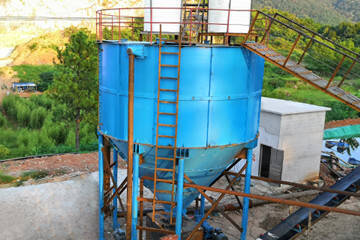

LZ thickener promoted the structure of internal feed tube on the basis of traditional vertical flow sedimentation tank, which greatly increase settling efficiency. The tank is circular, suspended solids settle down into bottom conical sludge tank by gravity, clear water flow away from overflow port around the upper tank. The overflow port is equipped with scum filter and baffle to ensure the water quality.
LZZG series introduced products to absorb foreign advanced technology, and designed combined with sand field actual situation. It can effectively reduce the loss amounts of fine material; solve problems of end product such as relatively high fineness modulus and relatively low stone powder content. The fine material can be recycled as high as 95%, with incomparable technical and economic advantages.
Model | Capacity (t/h) | Height (mm) | Volume (m³) | Weight (kg) | Overall Size (mm) |
S3040 | <50 | 3000*4000 | 35 | 7800 | 3600*3600*8860 |
S3060 | 50-100 | 3000*6000 | 50 | 9000 | 3600*3600*10860 |
S6030 | 100-150 | 6000*3000 | 100 | 11000 | 6600*6600*9400 |
S6040 | 150-200 | 6000*4000 | 130 | 14000 | 6600*6600*10400 |
S6050 | 200-250 | 6000*5000 | 160 | 17000 | 6600*6600*11400 |

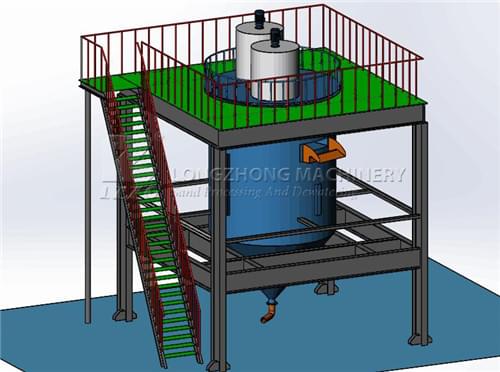

LZZG deep cone thickener promoted the structure of internal feed tube on the basis of traditional vertical flow sedimentation tank, optimized flocculation and deep solids compression provide paste consistency underflow and higher process rates, which greatly increase settling efficiency.

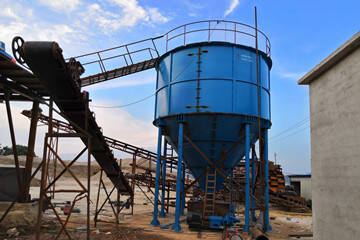

The deep cone thickener is circular, suspended solids settle down into bottom conical sludge tank by gravity, clear water flow away from overflow port around the upper tank, which is also called paste thickener. The port of the overflow is equipped with a filter and baffle, which improve the water quality that poured out.
Working principle
LZZG thickener is a thickener tank that based on gravity and sedimentation which makes solid separate from the liquid well. The concentration of pulp wastewater could be enhanced from 2% ~ 15% to 60%~ 70% by the paste thickener, the clear water is overflow from the upper part of the paste thickener, so as to achieve the purpose of sewage purification, solid-liquid separation, and maximum water recovery.
Technology Advantages
1.LZZG thickener automatic cleaning, automatic discharge slurry, solve manual operation;
2. Following the principle of suspension filtration, media adsorption and settling, maximum purification;
3. LZZG paste thickener use qualified carbon steel (or stainless steel), the machine has good strength and corrosion resistance;
4. Low flocculant using cost, big capacity, high efficiency, stable performance;
5. Small volume, small floor space, easy installation;
6. Service life is about 15 years, low investment but remarkable economic benefit;
7. The purified water by the paste thickener can totally reach to the national standard of discharge and can be recycled;
8.LZZG can customize thickeners to suit individual requirements.
