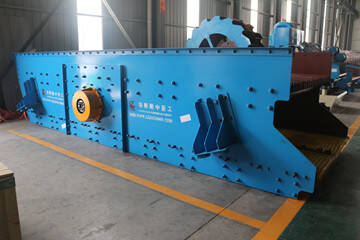

Y Series Vibrating Screen

Y series circular vibrating screen is a classic, universal and standardized screening equipment.
The vibrating screen is widely used in product grading in mining, building materials, transportation, energy, chemical and other industries. Long Zhong circular vibrating screen can be used for screening coal, limestone, gravel, gravel, metal or non-metallic ore and other materials.

Live chat Inquiry Send Email

LZZG series introduced products to absorb foreign advanced technology, and designed combined with sand field actual situation. It can effectively reduce the loss amounts of fine material; solve problems of end product such as relatively high fineness modulus and relatively low stone powder content. The fine material can be recycled as high as 95%, with incomparable technical and economic advantages.

Product Data

Model Feeding Size (mm) Capacity (t/h) Screen Panel (mm) Screen Area (m²) Power (kw) Overall Size (mm)
2YK1548 0-200 0-160 1500*4800 7.2 11 5000*2900*2900
2YK1860 0-200 0-200 1800*6000 10.8 15 6200*3400*3500
3YK1860 0-300 0-200 1800*6000 10.8 22 6200*3400*4100
2YK2160 0-200 0-250 2100*6000 12.6 22 6200*3700*3500
3YK2160 0-300 0-250 2100*6000 12.6 22 6200*3700*4100
2YK2460 0-200 0-300 2400*6000 14.4 22*2 6200*4100*3800
3YK2460 0-300 0-300 2400*6000 14.4 30*2 6200*4100*4400
2YK2472 0-200 0-300 2400*7200 16.8 22*2 7400*4000*4000
3YK2472 0-300 0-300 2400*7200 16.8 30*2 7400*4100*4600
2YK3072 0-200 0-300 3000*7200 21.6 30*2 7400*4700*4100
3YK3072 0-300 0-300 3000*7200 21.6 30*2 7400*4700*4700
3YK3672 0-300 0-350 3600*7200 25.92 37*2 7400*5400*4700

Details Introduction

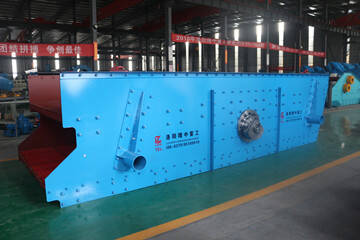

This Y series vibrating screen is vibrated by the circling motion. It is high efficient screen for filter materials into multiple grade according to the gravel size. For the compact structure and the convenient installation, it is the ideal screening device for prefilter of the feed materials before the primary crushing in the quarry site, it also can be used as separation and filtration solely. The vibrating screen adopts cylinder type eccentric shaft vibrator and partial block to adjust the amplitude. The materiel sieve drip line is long and more sieving specifications. The circular vibrating screen can also be used for production classifying in quarry, mine, construction, electricity, chemical industry,etc.

IMG_u1
IMG_u2
IMG_u4

Working principle

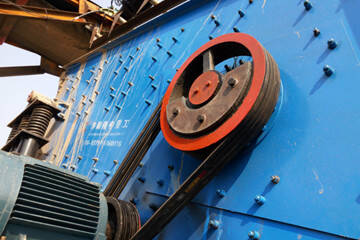

This series of circular vibrating screen is mainly composed of screen box, screen mesh, vibrator and damping spring, etc. The vibrator is installed on the side plate of the screen box and rotated by the motor through the triangle belt to produce centrifugal inertia force and force the screen box to vibrate. If users do not have special requirements, Y and 2Y type for textile screen, YH type for punching screen, all kinds of screen surface can meet the screening efficiency, long life, no hole plugging requirements.

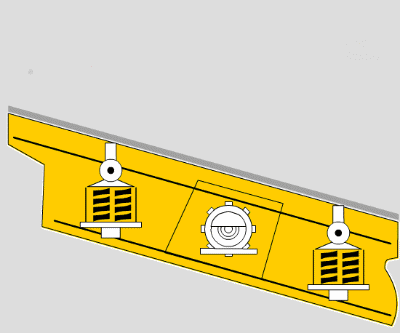

hhyThe circular vibrating screen or called round vibrating screen is mounted in a seat. The adjustment of the screen inclination can be achieved by changing the height of the spring support. The motor can be installed on the left side of the screen frame, and can be installed on the right side of the screen frame. If there is no special requirement, the manufacturer installs the product according to the right side of the material movement direction.
Y series circular vibrating screen is imported from foreign technology and has the characteristics of high screening efficiency, scientific and reasonable structure, high strength and rigidity of the whole machine, stable operation, sturdy and durable, low noise and convenient maintenance. According to the different needs of users, the series of vibrating sieve screens can be equipped with various types of screen surfaces such as wire mesh, rod, casting, welding and punching to meet the needs of different industries.

Features
1. The circular vibrating screen has novel structure, advanced technical parameters, large processing capacity and high screening efficiency.
2. The vibration motor is used as the excitation source, which is easy to use and maintain.
3. The vibrator is lubricated with bearings and oiled, and the external block is eccentric. The excitation force is large, the bearing load is small, the temperature is low, and the noise is small.
4. It adopts spring steel braided mesh or punched sieve plate, which has long service life and is not easy to block holes.
5. The whole disassembly and assembly of the vibrator is convenient for maintenance and replacement, which greatly shortens the maintenance period.
6. The circular vibrating screen adopts rubber vibration isolation spring, which has long service life, low noise and stable over-resonance area.
