Trommel Type Sand Washer

According to the needs of customers, the matetials should be grading and screening before washing and dewatering. Our technical department has designed this new type of screening and washing machine. LZZG called it compact sand washer with trommel screen.
Application: mining, aggregate processing, piling mud, river dredging, city construction waste incineration, ceramic raw material, silica sand production and various kinds of metal ores, tailings disposal and other industries.

Live chat Inquiry Send Email

LZZG series introduced products to absorb foreign advanced technology, and designed combined with sand field actual situation. It can effectively reduce the loss amounts of fine material; solve problems of end product such as relatively high fineness modulus and relatively low stone powder content. The fine material can be recycled as high as 95%, with incomparable technical and economic advantages.

Product Data

Model Feed Size (mm) Capacity (t/h) Roller Size (mm) Impeller Size (mm) Hydrocyclone (mm) Screen Panel (mm) Power (kw) Weight (kg) Overall Size (mm)
SX10-18-55-1224 ≤10 20-40 φ1000 1800*800 250*2 1200*2400 32.4 7200 6800*4980*2950
SX10-26-65-1530 ≤10 30-60 φ1000 2600*1200 300*2 1500*3000 43 9600 7450*5600*3050
SX12-30-75-1842 ≤10 40-80 φ1200 3000*1600 350*2 1800*4200 59 14600 4800*5800*3300
SX12-30-75-1842J ≤10 60-100 φ1200 3000*1600 350*2 1800*4200 63 16850 4800*5800*3300
SX12-30-120-2442J ≤10 80-120 φ1200 3000*1600 300*2 2400*4200 93 18600 4800*6200*3300
SX15-36-120-2442J ≤10 100-150 φ1500 3600*2000 300*4 2400*4200 100.5 22600 5800*6200*4000
SX18-36-140-3048J ≤10 120-200 φ1800 3600*2400 350*4 3000*4800 130 25720 6700*7200*4600
SX24-42-180-3660J ≤10 160-250 φ2400 4200*3000 300*6 3600*6000 171 34300 6700*7200*4600

Details Introduction

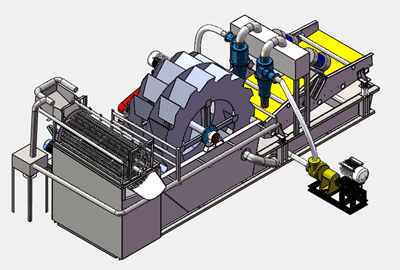

Trommel type sand washer is designed to classifying, washing and removing impurities from sand, gravel, mineral, frac sand, coal, metal mine tailings, ceramic, piling mud, river dredging and construction waste, thereby improving the products quality. Trommel type sand washers are mainly divided into two parts, one part is the drum screen for grading, the other part is the sand washer machine, separator, dewatering screen for sand cleaning, dehydrating and recovering.

img-t
Working principle
Material feed into the front-end drum screen firstly, turn over and roll on the screen surface and form two materials with different grain sizes due to the tilting and rotation of the drum device. Unqualified materials are discharged through the discharge opening at the tail. The qualified materials enter cleaning tank, roll and grind each other under the rotation of bucket to remove impurities covering the surface of gravel. At the same time, a strong water flow formed by trommel sand washer take away the impurity and small specific gravity, and discharged from the overflow port; the clean sand is taken away by the wheel impeller onto dewatering screen for dehydration treatment. The overflowing muddy water in water storage tank (including a small amount of qualified materials, waste water, impurities) is pumped into the hydrocyclone separator by high-pressure slurry pump. After the centrifugal concentration, the qualified material is sent to dewatering sieve for dehydration treatment. Waste water and impurities are discharged into the return tank through the separation device.

Features
1. Reasonable structure. The drum screen and wheel sand washer are combined with the vibrating screen to form an integral structure. The multi-stage screening and cleaning can better perform screening and cleaning, and promote the development of the screen washing industry.
2. Large processing capacity, high efficiency, easy to produce and process, short production cycle, small floor space.
3. The dual slurry pump and double cyclone are connected together to form two groups of structures, which are circulating water flow and save water consumption.
4. High degree of integration, can realize mobile operation.
