LZ Sand Recycling System

LZ series sand recycling system has absorbed foreign advanced technology, and designed combined with sand field actual situation. It is widely used in mud purification, artificial sand production line, hydropower station, sand aggregate system, glass raw material processing system, coarse slime recovery, and recycle fine material. It can effectively reduce the loss amounts of fine material; solve problems of end product such as relatively high fineness modulus and relatively low stone powder content. The fine material can be recycled as high as 95%, with incomparable technical and economic advantages.

Live chat Inquiry Send Email

LZZG series introduced products to absorb foreign advanced technology, and designed combined with sand field actual situation. It can effectively reduce the loss amounts of fine material; solve problems of end product such as relatively high fineness modulus and relatively low stone powder content. The fine material can be recycled as high as 95%, with incomparable technical and economic advantages.

Product Data

Model Feeding Size (mm) Capacity (t/h) Screen Panel (mm) Hydrocyclone (mm) Power (kw) Overall Size (mm)
LZ250 ≤10 20-50 900*1800 250 12.5 3100*1300*2700
LZ300 ≤10 40-80 900*1800 300 16.5 3100*1300*2700
LZ350 ≤10 60-100 900*1800 350 20 3100*1300*2700
LZ550 ≤10 40-100 1200*2400 250*2 26.4 3600*1600*2800
LZ650 ≤10 80-160 1200*2400 300*2 34.4 3600*1600*2800
LZ750 ≤10 120-200 1200*2400 350*2 41.4 3600*1600*2800

Details Introduction

Sand recycling machine has been specifically designed to recovery fines mixed in muddy water that discharged from sand washer machines, as well as sculting, desliming dewatering. The highly efficient fines recovery is efficiently improve the economic benefit, reduce disposal cost of tailings and the pollution and damage. Fines recovery machines are suitable for widely used in sand and gravel washing plant, glass raw material processing system, artificial sand production line, coal mining plant, coarse coal slurry recovery, environmental protection engineering and mud purification.

IMG_u1
IMG_u2
IMG_u3

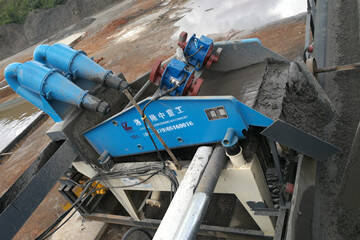

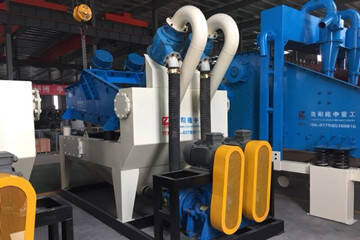

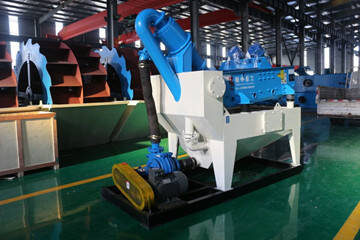

sand recovery machine
How sand recycling machine work?
Slurry pump transports the muddy water overflowed by sand washer machine to high pressure hydrocyclone separator, and solid-liquid separation is started to perform under high-speed centrifugal force and rated feed pressure. When the concentration increased to 60-70%, fine sand is supplied to dewatering screen through grit nozzle. Under the vibration motion, fine sand is effectively separated from the water, and then discharged through outlet to form stock piles. A small amount of fine sand, mud is returned to washing tank through the return tank, and is circulated and reciprocated, thereby achieving the purpose of recovering, dehydrating, and dry discharging of fine sand in the muddy water. The concentration of recycled materials by LDHB sand recycling machine is 70%-85%. Adjustable fineness modulus can be achieved by changing the pump speed, mortar concentration, adjusting the amount of overflow water, and replacing the mortar nozzle.

Features
1. Effectively recycle >95% fine sand.
2. 12%-15% water content of dewatered sand.
3. Polyurethane screens with blocking, and longs service life than other screen panels.
4. Hydrocyclone separator is lined with polyurethane, which improves the service life of the whole device and can smoothly complete the work of slurry concentration and liquid clarification.
5. Fully recovered fine particles reduce the workload and cleaning cost of sedimentation tank.
6. Recovered fine materials can be directly operated, and supplies to the market, which reduces the stacking time.
7. Specific solution can be designed according to different requirements of users.
