What is the Wheel Sand Washer in Sri Lanka

Date: Sep. 22, 2020

All kinds of sand washing plant for sale in Sri Lanka, among which the XSD sand washing machine in Sri Lanka is the best seller. But, what is the XSD sand washing machine? Let me tell you.

XSD series impeller sand washing machine is a kind of bucket-type sand washing equipment used with sand making machine. It is a piece of vital equipment to complete the cleaning operation of artificial sand and natural sand. It can wash away the trace of stone powder and impurity in the mingled sand produced by sand making mechanism and improve the quality of sand.

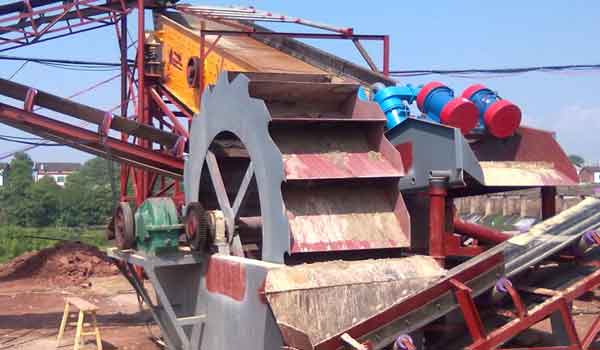

wheel sand washer

Working Principle

When the impeller sand washing machine is working, the motor drives the impeller to rotate slowly after deceleration through the V-belt, reducer, and gear. The sand and gravel enter the washing tank with the feeding trough, roll under the impeller, and grind each other to remove the covering sand and gravel surface until it destroys the water vapor layer that covers the sand grains to facilitate dehydration. Add water to form a strong water flow, timely takeaway impurities and a small proportion of foreign bodies, and discharge from the overflow outlet washing tank to accomplish the cleaning function. After the clean sand is taken away from the blade, the rotating impeller is poured into the discharge tank to complete the cleaning of the sand and stone.

wheel sand washer

Advantage of Wheel Sand Washer

1. Cleaning effect

The cleaning effect is one of the major advantages of the wheel sand washing machine. Generally, raw materials of machined sand will carry soil and other compound impurities during the mining process, and the sand must be washed after the sand is made. After cleaning by a wheel-type sand washer, the water vapor layer on the surface of the sand particles can be destroyed, and the moisture can be removed as quickly as possible to achieve the cleaning effect required for construction.

2. High efficiency and energy saving

High efficiency and energy-saving are also one advantage of the wheel sand washer. Using the wheel sand washer to wash sand saves manpower, and it will also improve the efficiency of sand washing. Also, sewage from the stone can be recycled to save water.

3. Improve resource utilization

Wheel sand washing machine also has certain advantages in resource utilization. Wheel sand washer makes full use of discarded pebbles and limestone resources by the river which can increase the amount of sand washing and reduce sand production costs and fully protect natural sand resources.

bucket sand washer

Maintenance Measures

To prolong the life of the wheel sand washer reasonable maintenance must be carried out in the long working process.

1. The bearing is responsible for the full weight of the machine. It is essential for the maintenance of the bearing. Usually, the bearing should be lubricated and cleaned, and the gear, bearing, sliding plane need to be lubricated.

2. Because the newly installed hoop is easy to loose, the operator needs to check it regularly.

3. Check all parts of the machine regularly to see if it works properly.

4. Wear wearing parts should be checked regularly. To reduce production troubles, worn parts need to be replaced in time.

5.The plane of the bottom frame of the movable device should be cleaned up in time to prevent debris from causing the movable bearing of the machine to not move on the low frame to avoid serious accidents.

6. If the oil temperature of the bearing rises, it is necessary to stop and check immediately to reduce the oil temperature.

7. When the rotating gear makes an impact sound during operation, the operator should stop the machine immediately to check the cause.
