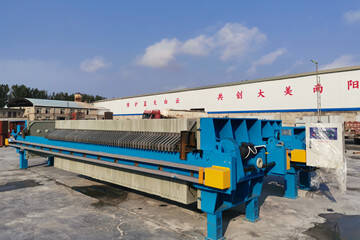

Our filter presses are supplied for a wide application in municipal & industrial wastewater treatment. Feed mud concentration always be 30%-40%, then mud will become mud cake and the humidity is around 20% after processed. LZZG filter press is a kind of Plate and Frame Filter Press, some now call it as “Chamber Filter Press”. Typically, no flocculant are needed to help dewatering on a plate filter press.
LZZG series introduced products to absorb foreign advanced technology, and designed combined with sand field actual situation. It can effectively reduce the loss amounts of fine material; solve problems of end product such as relatively high fineness modulus and relatively low stone powder content. The fine material can be recycled as high as 95%, with incomparable technical and economic advantages.
| Model | Capacity (t/h) | Filter Area (m²) | Filter Plate (mm) | Plate Number (block) | Filter Pressure (mpa) | Main Motor Power (kw) | Weight (kg) | Overall Size (mm) |
| G60-100 | 1-1.5 | 60 | 1000X1000X65 | 37 | 0.6-0.8 | 3 | 4800 | 5120X1450X1360 |
| G100-100 | 2-3 | 100 | 1000X1000X65 | 61 | 0.6-0.8 | 3 | 6630 | 6730X1450X1360 |
| G150-125 | 3-5 | 150 | 1250X1250X65 | 57 | 0.6-0.8 | 4 | 7950 | 7560X1840X1620 |
| G200-125 | 4-6 | 200 | 1250X1250X70 | 76 | 0.6-0.8 | 4 | 10800 | 9240X2050X1680 |
| G250-125 | 5-7 | 250 | 1250X1250X70 | 94 | 0.6-0.8 | 6.25 | 12060 | 10580X2050X1680 |
| G350-150 | 6-8 | 350 | 1500X1500X75 | 89 | 0.6-0.8 | 5.5 | 20880 | 10920X2500X1920 |
| G400-150 | 9-11 | 400 | 1500X1500X75 | 102 | 0.6-0.8 | 5.5 | 23480 | 11930X2500X1920 |
| G500-150 | 11-15 | 500 | 1500X1500X75 | 127 | 0.6-0.8 | 12.1 | 24880 | 13830X2500X1920 |
| G800-200 | 20-25 | 800 | 2000X2000X83 | 113 | 0.6-0.8 | 12.5 | 48000 | 15100X3700X2400 |
Filter press is a kind of mud treatment equipment developed for solid liquid separation in industrial production. It is mainly used in chemical, ceramic, petroleum, pharmaceutical, food, smelting and other industries, as well as industrial filtration and sewage slurry treatment. This equipment has the advantages of convenient operation and maintenance and reliable operation. The mud cake filtered by the filter press has a higher solid content and an excellent separation effect.
Working principle
Slurry is pumped into the filter press by high-pressure slurry pumps, the mixture flows through the filter medium (filter cloth), the solids stay on the filter cloths, forming filter cake; the filtrate exits the filter plates through the corner ports into the manifold, If it is not wanted the filtrate can be drained away for safe disposal.
Features
1. The structure is simple, the operation is easy and stable, and the maintenance is convenient.
2. Less wearing parts and low maintenance costs.
3. The filter area has a flexible sele
4. Compared with other types of dewatering machines, the mud cake has high solid content, small floor space, and convenient transportation and other post-treatment.
