Spiral Sand Washing and Recycling Machine

The spiral sand washer is a high efficient and multi-functional water washing equipment, which is composed of a spiral sand washing machine and a dewatering screen and hydrocyclones. Compared to the purchase price of equipment alone, the choice of spiral sand washing machine is undoubtedly more cost-effective.
The spiral sand washing machine consists of spiral sand washing device, overflow device, water reverse device, separation and recovery device, water storage tank, slurry pump, elrctro motor, reducer and so on.

Live chat Inquiry Send Email

LZZG series introduced products to absorb foreign advanced technology, and designed combined with sand field actual situation. It can effectively reduce the loss amounts of fine material; solve problems of end product such as relatively high fineness modulus and relatively low stone powder content. The fine material can be recycled as high as 95%, with incomparable technical and economic advantages.

Product Data

Model Feeding Size (mm) Capacity (t/h) Spiral Diameter (mm) Hydrocyclone (mm) Screen Panel(mm) Power (kw) Overall Size (mm)
LY40 ≤10 20-40 760 250X2 1200X2400 33.9 10880X5240X3720
LY60 ≤10 30-60 920 300X2 1500X3000 47 11490X5560X3960
LY80 ≤10 40-80 1120 300X2 1800X4200 59.5 12830X5860X4250
2LY100 ≤10 80-120 920X2 350X2 2400X4200 74 12630X6450X3860
2LY150 ≤10 100-150 1120X2 300X4 2400X4200 119 12630X6450X4150
2LY200 ≤10 100-160 1500X2 350X4 3000X4800 148 13560X7860X4300
2LY250 ≤10 160-250 1500X2 300X6 3600X6000 178 14760X7920X4900

Details Introduction

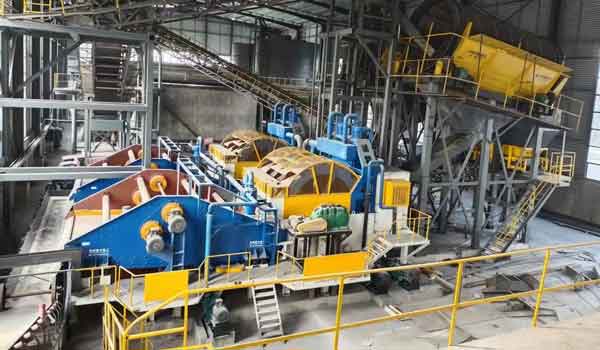

Spiral sand washing and recycling machine is a multi-functional sand washing equipment that integrates sand washing, dewatering and recycling, which is designed and developed by our company for sand, stone powder, and other materials with high mud content in sand and gravel washing industry. The reasonable structure of dewatering screen combined with sand screw washer to form an overall structure, which can reach more than 300 tons per hour.

Spiral sand washing and recycling machines effectively solve the defects of large loss of fine sand, high water consumption and unclean cleaning caused by traditional sand washers. The finished sand grading will more reasonable by the washing and sorting of the equipment and meet quality requirements of customers.

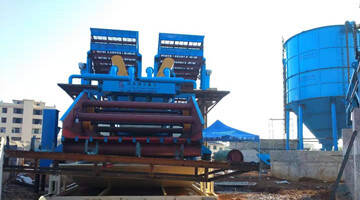

IMG_u1

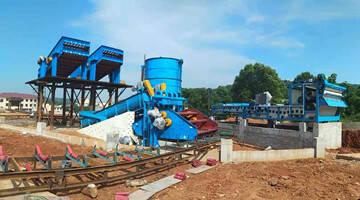

IMG_u2

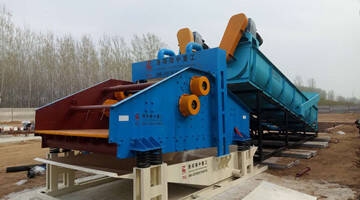

IMG_u3

Working principle
Due to the difference in the size of solid particles and specific gravity, the sedimentation velocity in liquid is different, so the fine particles floating on water is overflow. Coarse particles sink to the bottom of water tank and are pushed forward by spiral blade.

At the same time, the sand and gravel are scrubbed by water flow, so impurities and mud mixed into sand is washed and separated. Then falls onto the front end of dewatering screen, and the exciting force generated by vibration device in a single direction causes the material to reciprocate linearly and discharge from the discharge port.

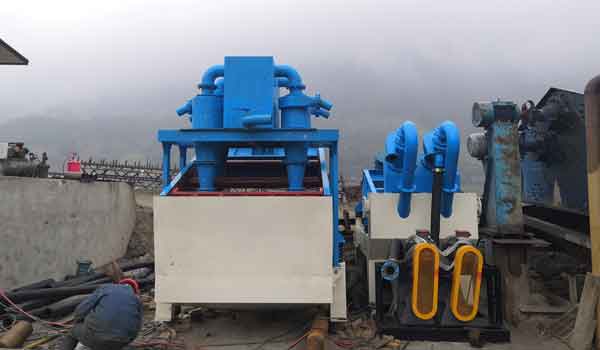

During this process, the moisture on material falls into screen box through screen mesh, and enters the back-end storage tank through overflow device, and then is pumped into the cyclone separator by slurry pump. After the centrifugal force is concentrated, the qualified materials enter dewatering screen for dehydrating. The drainage device is dehydrated, and the remaining wastewater enters the water repellent device for discharge.

Features
1. Adopt vibration exciter as the vibration source, large excitation force, the output can reach more than 300 tons per hour, and the continuous operation can be realized.
2. Specially for high mud content materials and large processing capacity.
3. The slurry pump and cyclone are connected together to form a return of water, saving water consumption and costs.
4. Integrated structure can save lots of capital construction costs.
5. Strong flexible and mobility can save a large amount of delivery costs.
