This sand washing machine is a kind of wheeled washing equipment by water, that improve the sand quality by separate and remove the dust and impurities mixed in sand. It is widely used in the sand washing plants for washing, classifying, dewatering and fines recycling natural sand or mechnism sand.
LZZG series introduced products to absorb foreign advanced technology, and designed combined with sand field actual situation. It can effectively reduce the loss amounts of fine material; solve problems of end product such as relatively high fineness modulus and relatively low stone powder content. The fine material can be recycled as high as 95%, with incomparable technical and economic advantages.
| Model | Feeding Size (mm) | Capacity (t/h) | Impeller Size (mm) | Hydrocyclone (mm) | Screen Panel (mm) | Power (kw) | Overall Size (mm) |
| DL40 | ≤10 | 20-40 | 1800*800 | 250*2 | 1200*2400 | 29.4 | 5800*5000*1950 |
| DL60 | ≤10 | 30-60 | 2600*1200 | 300*2 | 1500*3000 | 40 | 5800*5560*2750 |
| DL80 | ≤10 | 40-80 | 3000*1600 | 300*2 | 1800*4200 | 46.5 | 7950*6200*3700 |
| DL100 | ≤10 | 60-100 | 3000*1600 | 350*2 | 1800*4200 | 57.5 | 7950*6200*3700 |
| DL150 | ≤10 | 100-150 | 3600*2000 | 300*2 | 2400*4200 | 89.5 | 8500*6800*3700 |
| DL200 | ≤10 | 120-200 | 3600*2400 | 350*4 | 3000*4800 | 115 | 7950*7400*4100 |
| DL250 | ≤10 | 160-250 | 4200*3000 | 300*6 | 3600*6000 | 149 | 8580*8020*4860 |

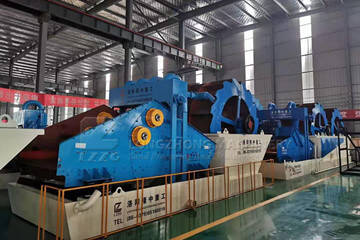

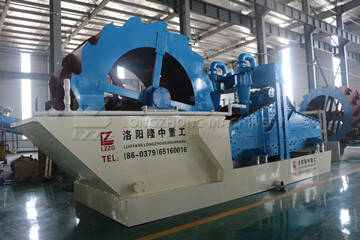

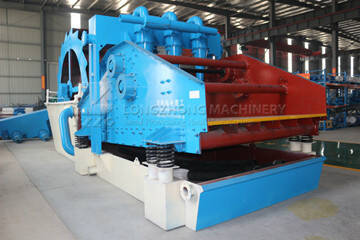

The LZ Sand Washing & Recycling Machine is engineered based on a sand washer and sand recycling system, incorporating advanced international technology. Key components include the XSD wheel sand washer, high-frequency dewatering screen, high-pressure cyclone, cleaning tank, return box, high-pressure wear-resistant slurry pump, motors, and more. This machine features a simple structure with multiple functions and is widely used for washing, screening, recycling, and dewatering crushed sand, river sand, lake sand, or sea sand.
Working Principle
*Washing: The bucket is driven by the motor through the reducer and rotates in a circle. It features numerous sand storage web grooves and a bucket screen for sand retention and primary dewatering. As the bucket moves, sand is discharged from the storage web grooves after being cleaned in the cleaning tank and primarily dewatered on the bucket screen.
*Recycling: Slurry water is extracted by the slurry pump, and fine sand is collected via the centrifugal force of the cyclone before being fed onto the polyurethane screen from the apex spray. Fine sand (0.16-3mm) and water are efficiently separated using the vibration screen.
*Dewatering: Coarse sand (3-10mm) and fine sand (0.16-3mm) are fed onto pol
vibrating screen for dewatering.
Features
1. Higher sand quality with lower moisture content.
2. Recovers fine sand in the 0.16–3mm range, resulting in lower mud content.
3. Compact structure for easy installation.
4. High productivity, enabling the recovery of up to 95% of fine particles in the material.
5. Solves cleaning issues in sedimentation tanks while improving economic performance.
