No.6 Fine Sand Recycle System

In the past few years, we improve core technical, select new processing methods and absorb different sites working situation, and successfully make No.6 sand recycling system as our LZZG brand. It is also called as “dewatering type sand recycling system”.

Live chat Inquiry Send Email

LZZG series introduced products to absorb foreign advanced technology, and designed combined with sand field actual situation. It can effectively reduce the loss amounts of fine material; solve problems of end product such as relatively high fineness modulus and relatively low stone powder content. The fine material can be recycled as high as 95%, with incomparable technical and economic advantages.

Product Data

Model Feeding Size (mm) Capacity (t/h) Screen Panel (mm) Hydrocyclone (mm) Power (kw) Overall Size (mm)
LZ1224D-55 ≤10 20-40 1200X2400 250X2 26.4 2760X4850X2780
LZ1530D-65 ≤10 30-60 1500X3000 300X2 36 3300X5250X3000
LZ1842D-75 ≤10 40-80 1800X4200 350X2 48 4600X5560X3520
LZ1842J-75 ≤10 60-100 1800X4200 350X2 52 4600X5560X3520
LZ2442J-120 ≤10 100-150 2400X4200 300X4 82 4600X6250X3600
LZ3048J-140 ≤10 120-200 3000X4800 350X4 104 5400X7000X4200
LZ3660J-180 ≤10 150-250 3600X6000 300X6 134 6600X7000X4800

Details Introduction

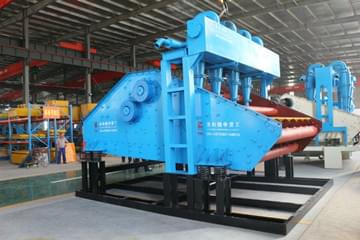

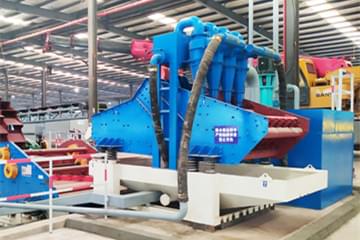

Fines recovery units is a combination of dewatering screen and hydrocyclone that is specifically developed integrates dewatering, screening and fine material recovery on the basis of the original recycling machine, and achieves the effect of multi-purpose machine. Fines recovery unit is generally directly used at the rear of sand washer, dewatering screen further dehydrates the finished material of sand washing machine, and recovery system effectively extracts and recovers the fines in tail water overflowed by sand washing machine to realize the coarse and fine sand centralized dehydration and recovery.

Working principle
About No.6 sand recycling system, we still choose polyurethane screen as its main screening part, and add recycling part on TS dewatering screen.
Sand after sand washer is fed onto polyurethane screen for dewatering, waste sand water through steel chute or rubber pipe in water tank and extracted by slurry pump into high pressure sediment separator, fine sand 0.16-3mm is sprayed onto polyurethane screen also for de-watering, the waste water is back to return box and flowing out.

Features
1. Both dehydration and recovery functions, which solves the problem of high fineness modulus and low stone powder content of finished sand in artificial aggregate processing system.
2. Above 95% fines recovery rate brought the direct economic benefit to customers is more than 15%, which has both environmental protection and economic benefits.
3. Improve the quality and productivity of finished products, fully solve the problems of sand washing machine.
4. Secondary washing function make the products cleaner.
5. Fines recovery unit can also provide more flexible process configuration for customer to meet the different production requirements besides the existing fixed group form.
6. Multi-function, easy to operate, saving investment cost and floor space.

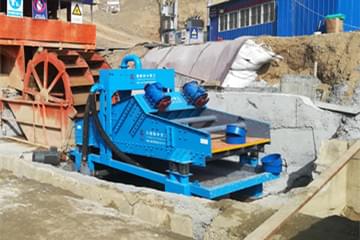

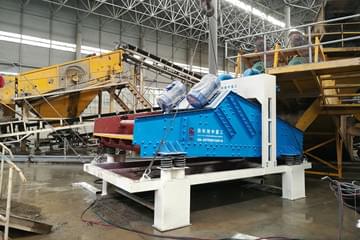

Related Case
