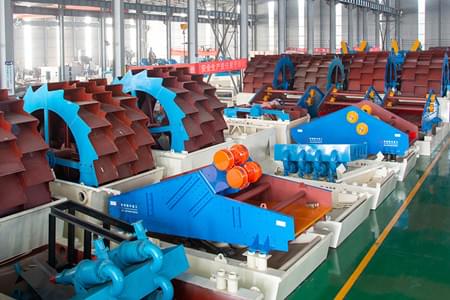

XS Sand Washing & Dewatering Machine

Sand washing with dewatering machine is a special equipment developed by LDHB aiming at the problems of poor quality of sand (such as water content, large amount of mud, much dust, difficult and easy removal of impurities, etc.) and poor washing and selection effect of sand washing machine equipment, which can effectively solve the problems of poor sand.

Live chat Inquiry Send Email

LZZG series introduced products to absorb foreign advanced technology, and designed combined with sand field actual situation. It can effectively reduce the loss amounts of fine material; solve problems of end product such as relatively high fineness modulus and relatively low stone powder content. The fine material can be recycled as high as 95%, with incomparable technical and economic advantages.

Product Data

Model Power (kw) Feed size (mm) Production (t/h) Weight (kg) Overall Dimension (L*W*H)(mm)
XS1026 9.9 ≤10 30-50 5180 6022*2150*2730
XS1630 19.4 ≤10 50-120 7300 7200*2900*3070
XS2036 24.5 ≤10 120-180 9450 7200*3000*3600

Details Introduction

No matter which kind of sand washer used in sand processing plant, the final sand always contains a large amount of water. But dry sand is needed by most of customers. In order to solve this problem, our company researched and developed XS sand washing & dewatering machine successfully, which combined washing with dewatering functions. It perfectly solved the above problem.

Working principle
The work style of this series sand washer is rotary and movable.
The bucket is driven by motor through reducer and rotates in circle. There are many sand storage web grooves in grille form. When the bucket moves, sand can be put out by storage web groove after being cleaned, waste water outflows through web groove’s holes. Meanwhile the washed sand will be fed into PU screen directly for dewatering. In the process of sand washer is running, sand is discharged through the feeding groove. Sand washer can circumrotate and discharge sand periodically by motor’s continuously running, which can realize the batch production. It works the same as XSD sand washing machine. After vibrating and dehydrating on the PU screen, dry sand is the final product.

Features
1. Sand washing and dewatering machine integrated sand washing machine, dewatering screen two kinds of equipment advantages and characteristics.
2. Greatly reduce the sand in the mud, water, dust, impurities and so on, improve the sand and the price.
3. Energy saving and environmental protection, low energy consumption.
4. The whole machine installation, convenient and fast transportation.
5. Low failure rate and long service life.
